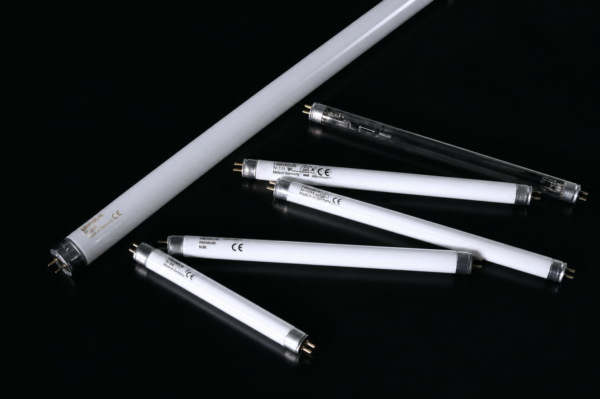

Herolab UV Replacement Lamps

Item No.:

LS-29 XX XXX

Herolab UV replacement lamps are available for 254nm, 312nm or 365nm depending on the item number. The selection is made based on the existing Herolab UV unit, the required wavelength and the exact item number.

Category: UV Products Brand: Herolab

This product group summarizes Herolab UV replacement lamps by wavelength. The ordering information separates the available variants into 254 nm, 312 nm and 365 nm.

Before ordering, the device type, existing lamp, wavelength and item number are compared. This means that the right replacement tube can be assigned to the existing UV unit.

Technical Specifications

Parameter	Information
product group	UV replacement lamps
wavelengths	254 nm, 312 nm or 365 nm depending on the item number
use	Replacement for compatible Herolab UV units
Selection criteria	Device type, existing lamp, wavelength and item number
Compatibility check	before ordering based on the existing device and the item number

The item numbers and associated variants are listed in the following table.

Pos.	Item No.	Description
Wavelength: 254nm	Wavelength: 254nm	Wavelength: 254nm
1	LS-29 83 300	Replacement UV lamp, short wave, 4 watts, 254 nm
2	LS-29 84 000	Replacement UV lamp, short wave, 15 watts, 254 nm
3	LS-29 84 030	Replacement UV lamp, short wave, 30 watts, 254 nm
4	LS-29 84 300	Replacement UV lamp, short wave, 8 watts, 254 nm
5	LS-29 84 800	Replacement UV lamp, short wave, 6 watts, 254 nm
Wavelength: 312nm	Wavelength: 312nm	Wavelength: 312nm
6	LS-29 84 100	Replacement UV lamp, medium wave, 15 watts, 312 (302) nm
7	LS-29 84 400	Replacement UV lamp, medium wave, 8 watts, 312 (302) nm
8	LS-29 84 900	Replacement UV lamp, medium wave, 6 watts, 312 (302)nm
Wavelength: 365nm	Wavelength: 365nm	Wavelength: 365nm
9	LS-29 83 500	Replacement UV lamp, long wave, 4 watts, 365 nm
10	LS-29 83 508	Replacement UV lamp, long wave, 4 watt, 365 nm, blacklight (BLB)
11	LS-29 84 138	Replacement UV lamp, long wave, 30 watt, 365 nm, blacklight (BLB)
12	LS-29 84 200	Replacement UV lamp, long wave, 15 watt, 365 nm
13	LS-29 84 208	Replacement UV lamp, long wave, 15 watt, 365 nm, blacklight (BLB)
14	LS-29 84 500	Replacement UV lamp, long wave, 8 watts, 365 nm
15	LS-29 84 508	Replacement UV lamp, long wave, 8 watt, 365 nm, blacklight (BLB)
16	LS-29 85 000	Replacement UV lamp, long wave, 6 watts, 365 nm
17	LS-29 85 008	Replacement UV lamp, long wave, 6 watt, 365 nm, blacklight (BLB)

How is the right replacement tube selected?

The device type, existing lamp, wavelength and the associated item number are compared. Which wavelengths are available?

Depending on the item number, replacement lamps for 254 nm, 312 nm or 365 nm are listed. Can a replacement tube with a different wavelength be used?

The wavelength must match the intended application and the approved device version. What information is required for an inquiry?

What is required is the device type, serial or item number of the existing unit and the desired wavelength. Are installation and operation relevant to safety?

Installation and operation are carried out in accordance with the device manufacturer’s specifications and local safety regulations. Where are the item numbers?
The available variants are listed by wavelength in the ordering information.
