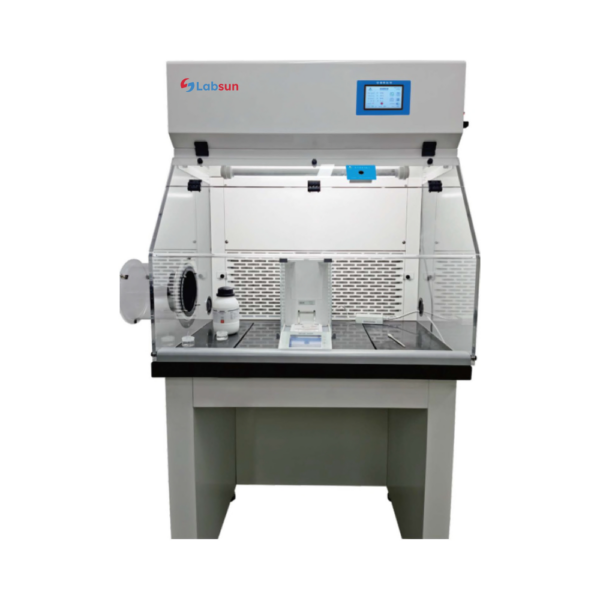

OEB-5 Wägeschutzkabine mit horizontalem Luftstrom, HEPA-/PR-Filtersystem, 5-Zoll-Touchscreen und Echtzeitüberwachung

OEB-5 Weighing Containment Enclosure with Horizontal Airflow, HEPA/PR Filtration, 5-Inch Touchscreen, and Real-Time Monitoring

AWF9000/1302 weighing of highly potent active pharmaceutical ingredients (HPAPIs) (OEB 5) and to meet high-precision weighing requirements while ensuring safety protection.



Price: On request

OEB-5 Weighing Containment Enclosure with Horizontal Airflow, HEPA/PR Filtration, 5-Inch Touchscreen, and Real-Time Monitoring
Category: Brand:

The horizontal airflow mode and rear air inlet design not only enable stable readings, but also prevent toxic substances from being released when changing filters (PR filters and HEPA filters). Professional 5-inch medical-grade touchscreen with high resolution. Real-time monitoring of filter performance, differential pressure, temperature and humidity. Meets the requirements of OEB-5 while ensuring stable measured values ​​during high-precision weighing processes. Intelligent touchscreen operating system.



Technical Specifications:

  • Overall width (mm): 900 (AWF900), 1300 (AWF1302)
  • Airflow (m³/h): 230 (AWF900), 420 (AWF1302)
  • Filter module columns: 1 (AWF900), 2 (AWF1302)



Download documents:

Pos. Item No.  Description
System
1 LS-AWF900-M-BT cover for balance, L900 benchtop
2 LS-AWF900-M-OF cover for balance, L900  with table
3 LS-AWF1302-M-BT cover for balance, L1300 benchtop
4 LS-AWF1302-M-OF cover for balance, L1300  with table
Consumables
5 LS-AF4A-V filter of organic subs, with min effect on inorganic subs. L900
6 LS-AF4B-V filter of organic subs, with min effect on inorganic subs. L1300
7 LS-AF4A-M comprehensive filter of organic & inorganic subs., L900
8 LS-AF4B-M comprehensive filter of organic & inorganic subs., L1300
9 LS-AF4A-F filter of formaldehyde, L900
10 LS-AF4B-F filter of formaldehyde, L1300
11 LS-AF4A-A filter of ammonia，L900
12 LS-AF4B-A filter of ammonia，L1300
13 LS-AHP-A medical grade filter,H14, L900
14 LS-AHP-B medical grade filter,H14, L1300
15 LS-PF900 pre-filter, L900
16 LS-PF1302 pre-filter, L1300
Service
17 LS-AWF-S annual service

Question: What is the OEB-5 weighing protection cabin used for?

Answer: It is used for the safe weighing of highly potent pharmaceutical active ingredients, potent powders and dangerous substances.

Question: How does the cabin protect the user and sample?

Answer: Horizontal airflow, HEPA/PR filtration system and real-time monitoring support airborne particle capture and a controlled work environment.

Question: Which variants are available?

Answer: Variants with 900 mm and 1300 mm Overall width and different Airflow rates are described.

Question: Which laboratories is the cabin suitable for?

Answer: It is suitable for pharmaceutical, chemical and analytical laboratories with increased protection requirements when weighing or handling potent substances.

Question: What should be checked before selection?

Answer: Check OEB requirement, material properties, scale size, filter change concept, Airflow and available floor space.
